Fully assembled V1 electrolysis cell. It arrives built, so the work left to you is connecting your own electrodes, power supply, and plumbing.

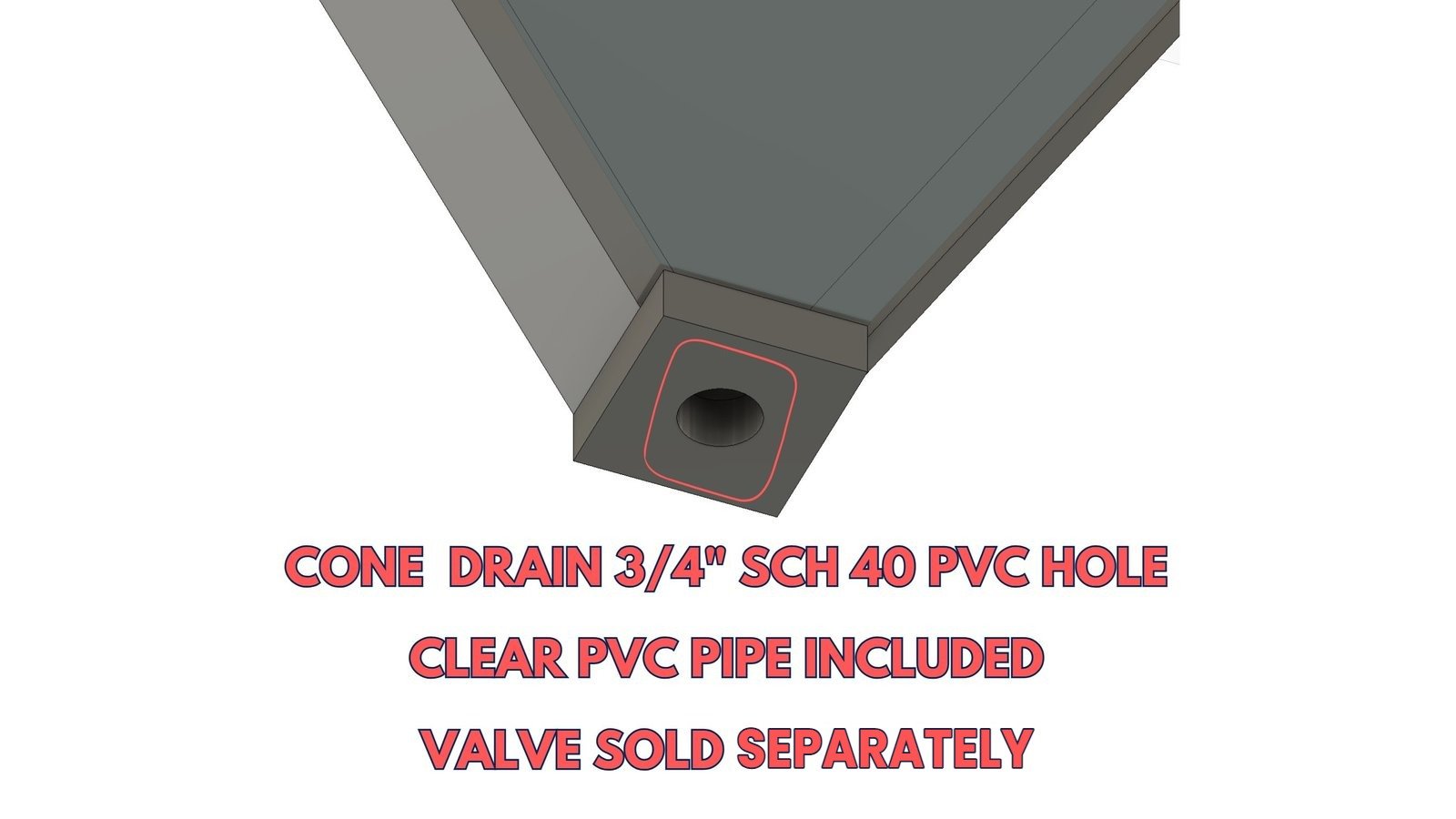

It ships assembled except for the 1/2″ drain pipe and the inlet and outlet pipes, which are left unattached so they do not snap in transit. Fitting them takes minutes.
What you get
- Cell body in white 3/4″ (19mm) PVC foam board, cut and assembled
- Two clear PVC face plates, 1/4″ thick, one for the anode side and one for the cathode side

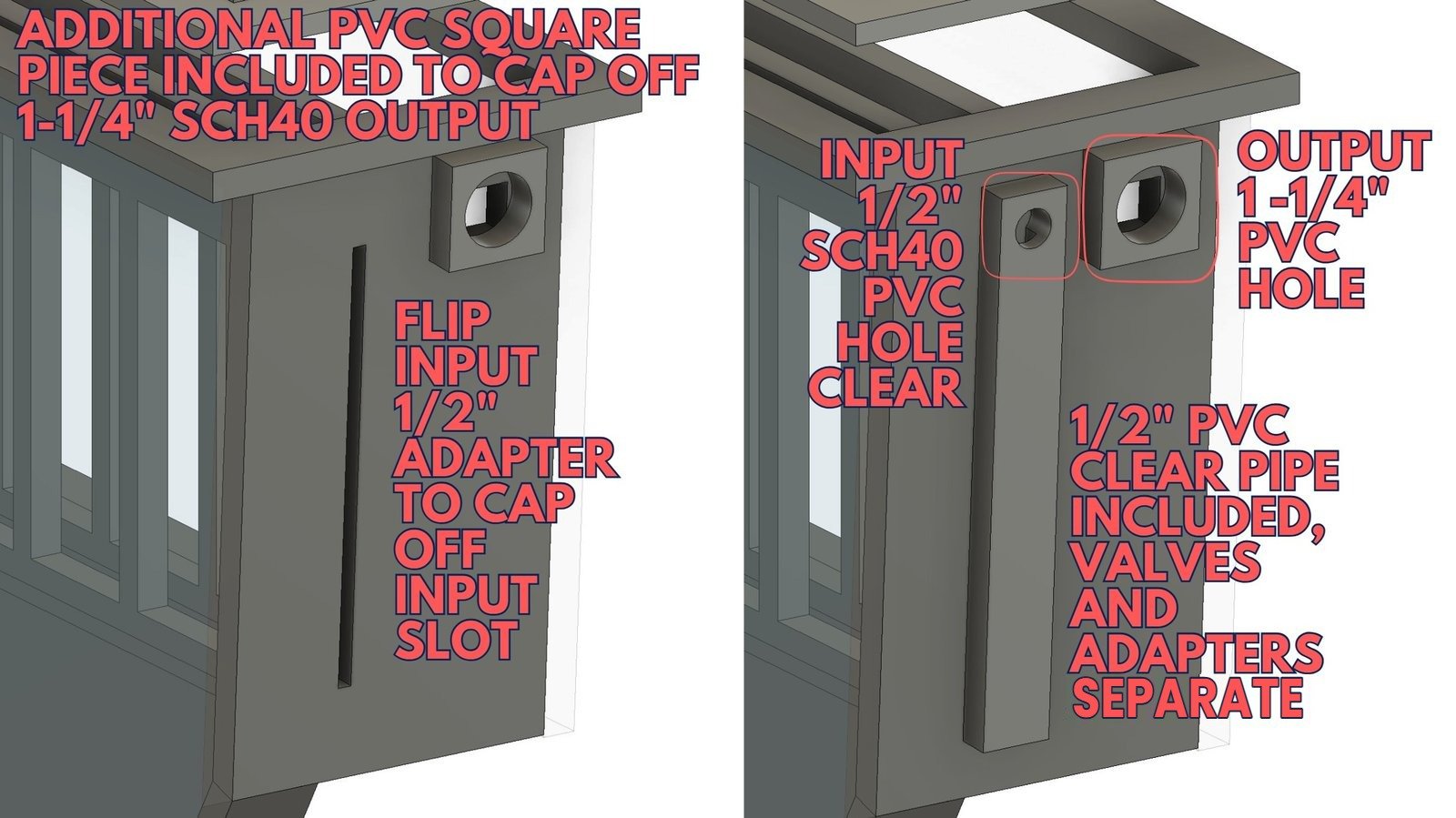

- One 1/2″ clear PVC pipe, roughly 3″ to 6″ long
- One 3/4″ clear PVC pipe, roughly 3″ to 6″ long
- Titanium bolt at the base for corrosion resistance

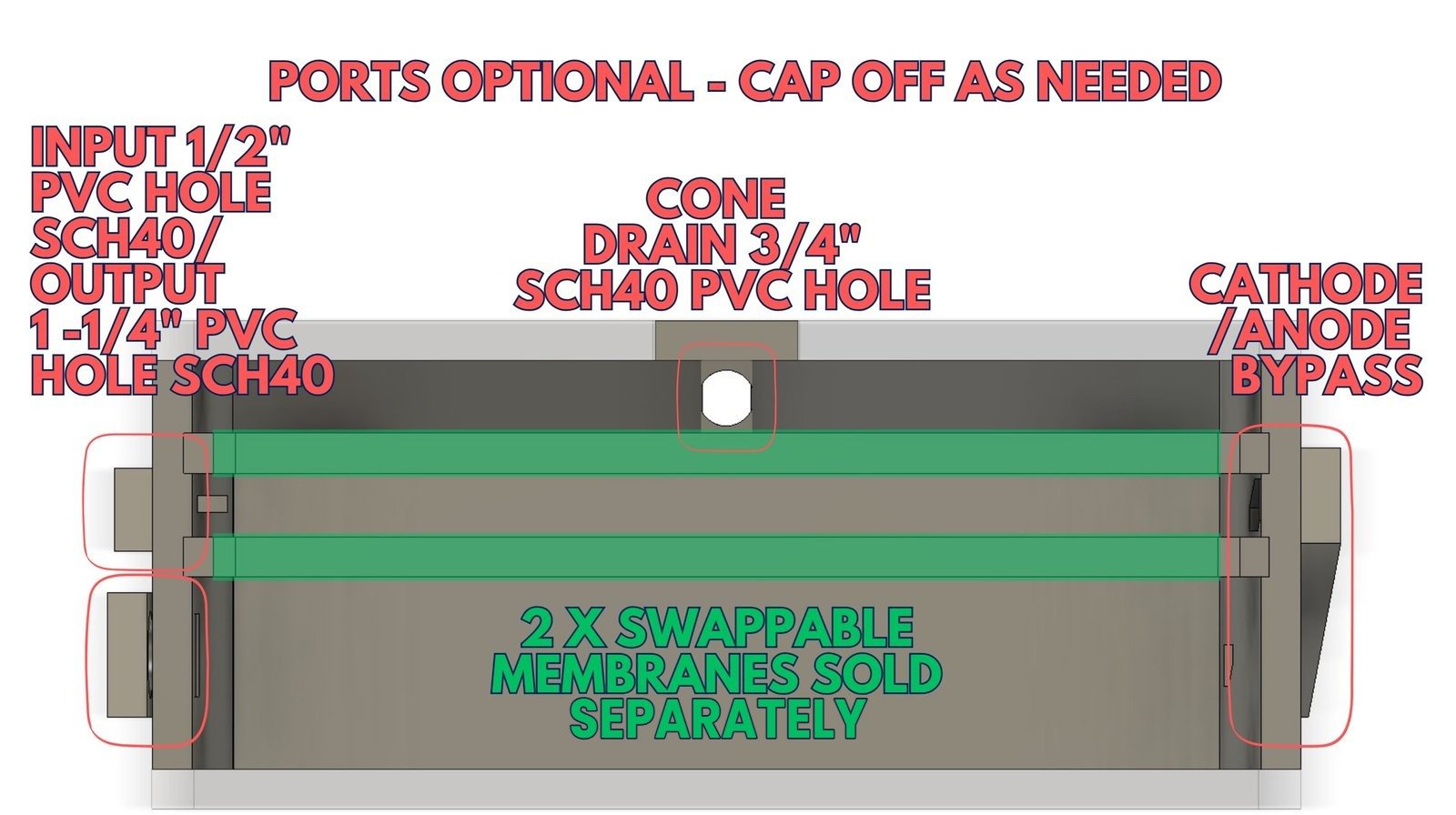

- Membrane slot ready to take a slide-in membrane
Note on the face plates: “clear” PVC carries a natural transparent blue tint. There is no truly colorless or optically clear PVC.
Not included

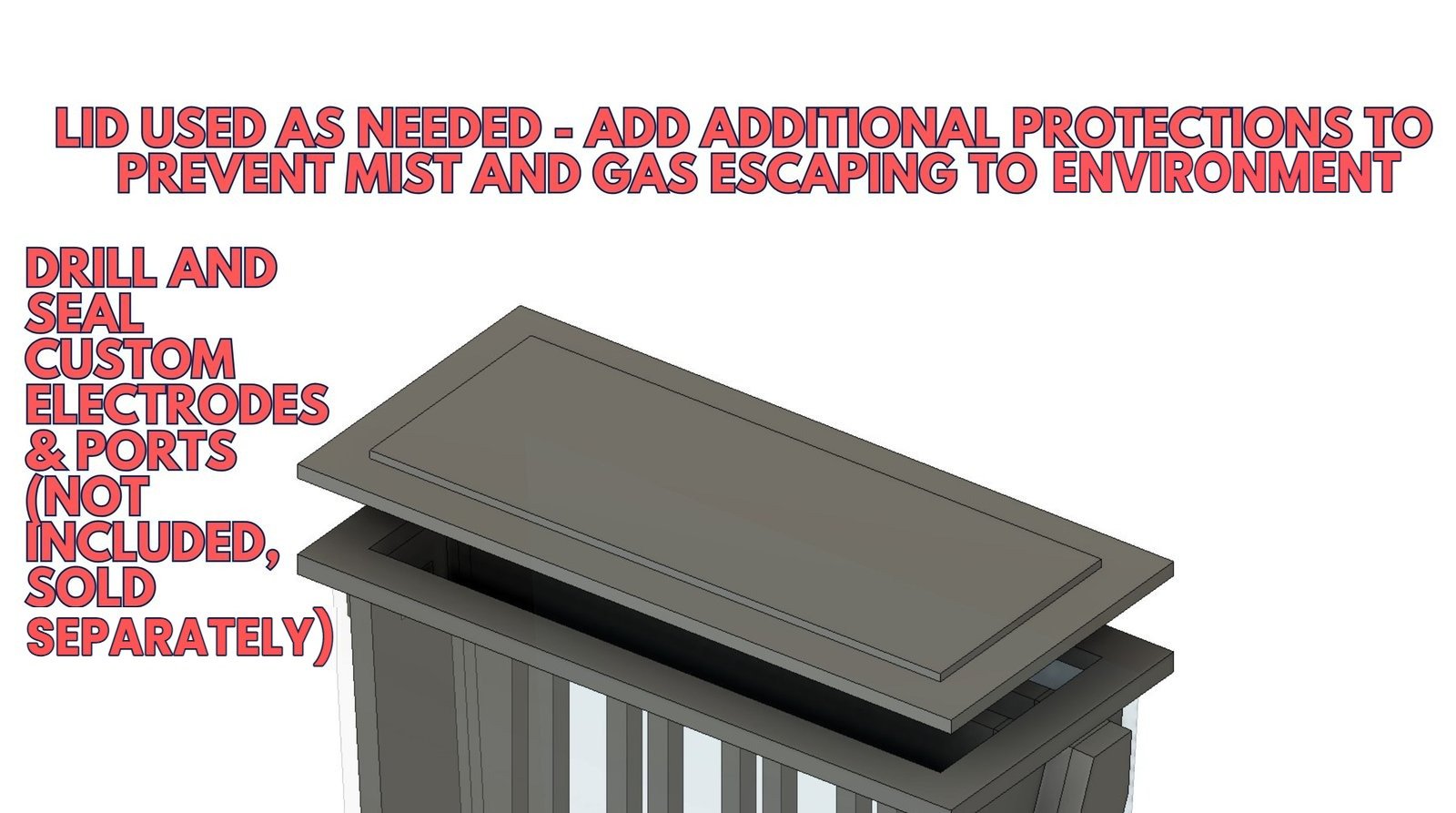

Slide-in membranes, electrodes, power supply, pumps, fittings and hoses, fasteners and framing, gaskets and seal materials, stands, and anything else specific to your process.
Membranes are sold separately. The V1 takes up to two: V1 slide-in cation exchange membrane.
Prefer to build it yourself?
The same cell ships as a flat pack of pre-cut parts at a lower price. See the V1 unassembled electrolysis cell if you would rather supply the assembly time and choose your own fasteners and sealing method.

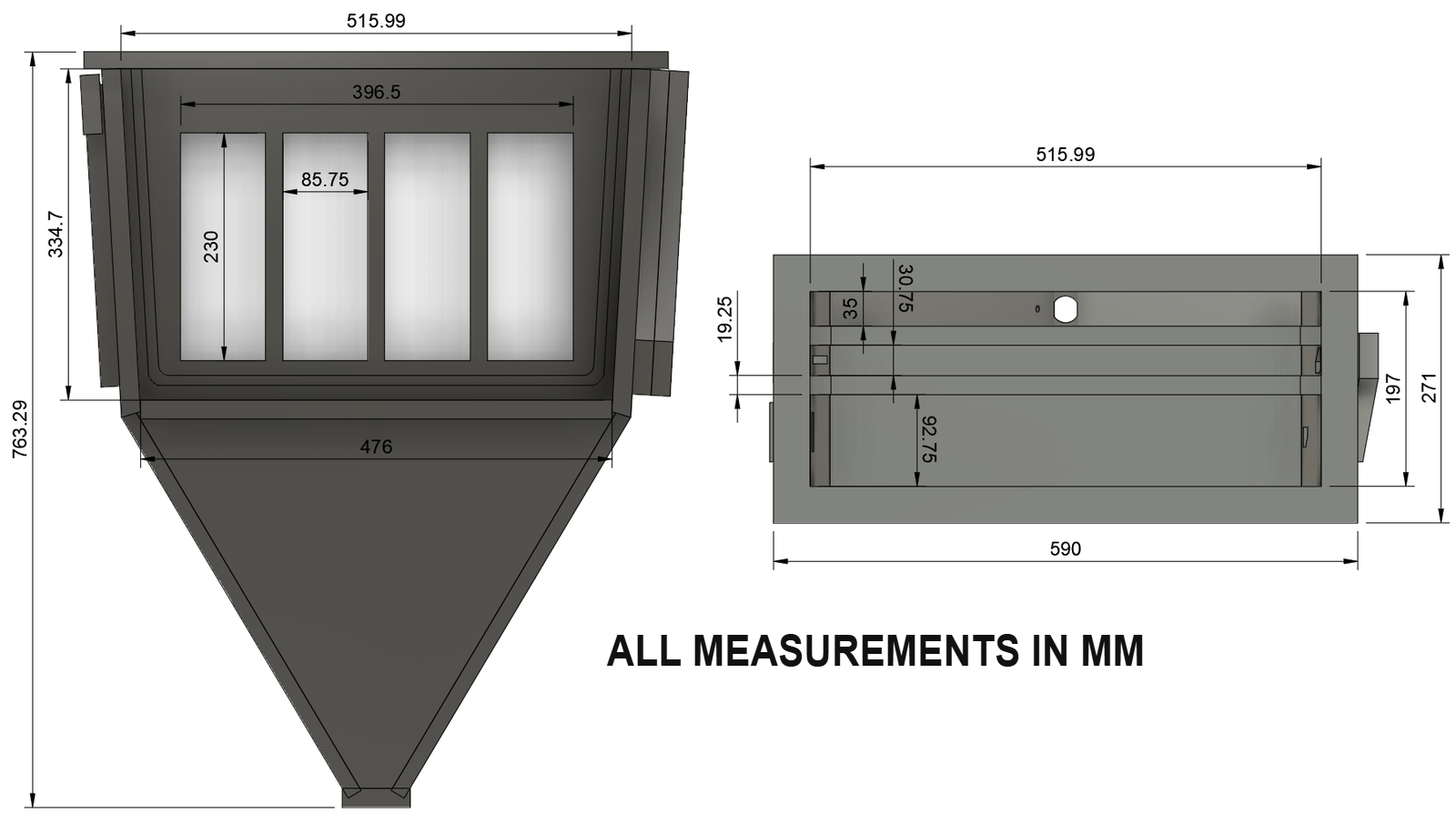

Shipping dimensions 24 x 35 x 10 inches, 35 lbs.
